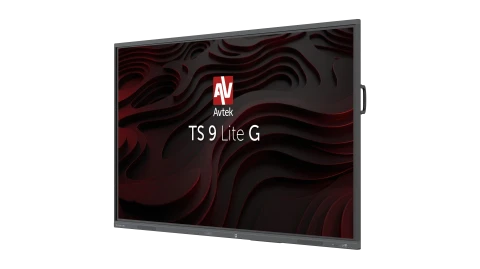

Interactive flat panel Avtek TS 9 Lite G 86

SKU: 1TV456

Main attributes:

Series: Lite

Display size: 86"

System: Android 16

EDLA: Yes

Brightness: 520 cd/m²

Contrast: 5500:1

RAM: 8GB

ROM: 128GB

Built-in speakers: 2 x 20W + 20W subwoofer

Additional informations:

See where to buy

Avtek TS 9 Lite G

A versatile tool designed for users who expect greater comfort and freedom in their work. Excellent image quality and high touch precision make every interaction natural and intuitive. The monitor’s extensive capabilities make lessons, presentations and meetings even more efficient, providing more room for collaboration and turning ideas into reality.

	Avtek TS 9 Lite runs on the modern Android 16 operating system. You get a highly intuitive interface familiar from smartphones, advanced personalisation options and the confidence that the monitor’s software will remain up to date and compatible with new applications for years to come.
Official EDLA certification provides secure access to the Google Play Store. Download your favourite apps, office suites and communication tools directly to the screen, backed by high cybersecurity standards.
	The built-in Note app is much more than a place for notes. Bring meetings to life and make every idea easier to visualise by creating clear mind maps, tables and 3D models, then instantly share the results of a lesson or business brainstorming session with participants using a QR code.

Collaboration made easier

Share and display your screen

The built-in screen sharing app is a true collaboration hub. Connect up to 254 devices and wirelessly display content from 9 of them simultaneously. Can’t see the monitor clearly? Display its content on your own device! Live viewing supports 250 mobile devices or 50 computers, which can also be used to control the screen remotely.

Presenter toolkit

Annotate on any source. Add handwritten notes to any image, presentation or website. Keep meetings on track with useful tools including a stopwatch, timer and virtual spotlight that focuses attention on the most important detail.

Voting

Instant group feedback. Launch the voting system with a single click from the shortcut bar, regardless of what is displayed on the screen. Ask questions, collect responses instantly and display ready-made summaries.


User profiles with NFC	Microphones for more	More connections
Quick profile switching provides convenient access to your own monitor settings.	Video conferencing, screen recordings with voice commentary and convenient creation of video materials.	HDMI, DisplayPort, VGA and USB-C provide the flexibility to connect a wide range of devices and signal sources.

The high-quality 4K display delivers outstanding image clarity with brightness of up to 520 cd/m2. The built-in adaptive brightness function continuously adjusts the screen backlight to the conditions in the room. The device uses the latest Zero Bonding GEN 2 screen bonding technology, an anti-glare coating and a software-based blue light filter. This combination ensures maximum viewing comfort and helps reduce eye strain.

With the Avtek TS 9 Lite, there is no need to worry about choosing additional accessories. The box includes a perfectly matched wall mount, allowing the screen to be safely installed straight out of the box. It is a complete solution that enables efficient installation without additional expense.

When you choose an Avtek monitor, you receive free access to the Avtek Support Center (ASC). In one place, you will find user resources, practical guides, instructional videos and technical support for Avtek products.


Knowledge base	Articles and tips	24/7 Support

Series	Lite
Display size	86"
System	Android 16
EDLA	Yes
Panel	VA
Aspect Ratio	16:9
Panel resolution	3840 x 2160
Viewing Angle	178 °
Brightness	520 cd/m²
Contrast	5500:1
Colors displayed	1.07 Billion
Response time	6.5 ms
RAM	8GB
ROM	128GB
Working time	24/7
Panel Lifespan	≥ 50 000 h
Built-in speakers	2 x 20W + 20W subwoofer
Built-in microphone	1
Warranty	5 lat (2 lata one to one)
Touch technology	Infrared
Touch response time	< 5 ms
How to use	Palec lub dowolny inny przedmiot
Touch resolution	32768 × 32768 pkt
Video Outputs	HDMI
Video inputs	Display Port, VGA (D-Sub15), 3 x HDMI, 2 x USB (C)
Audio inputs	Microphone (mini jack 3.5 mm)
Communication ports	RJ-45, RS232, 5 x USB (A), 2 x USB Touch, 2 x USB (C)
Audio outputs	mini jack 3.5 mm, SPDIF
Power consumption (max.)	410 W
Power consumption (Stand-by)	≤ 0.5W
Additional functions	Google Play, NFC, OPS slot, Annotation on any source, Voting tool, Application for making notes, Light sensor, Bluetooth communication, Windows software compatible with the note-taking app, Upload your own logo, Display text comments on the screen by participants, Change of signal source name, Kiosk mode
Energy consumption	230 W
Certificates	CE, RoHS
VESA	800 x 600 mm
Monitor size	1957 × 1170.8 × 99.5 mm
Package dimensions	2110 × 1306 × 185 mm
Weight	55.85 kg
Gross weight	65.15 kg
Accessories in box	Power cable (3 m), Markers (2 pcs.), Remote control, HDMI cable (3 m), USB cable, Wall mounting bracket, WiFi/Bluetooth module
